Photo Page !
Here a photos of my models, and models made by friends.
All the photos shown are available as plans, just ask for details ! I am adding more photos of my models here as I build/photo them!
|
The 1st Good Model !
|
Another View !
|

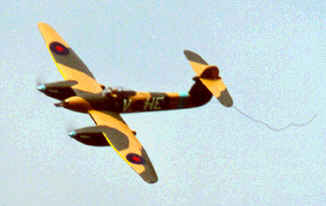

Mark Rittinger's Westland Whirlwind
|
Mark Rittinger with two of his models
|

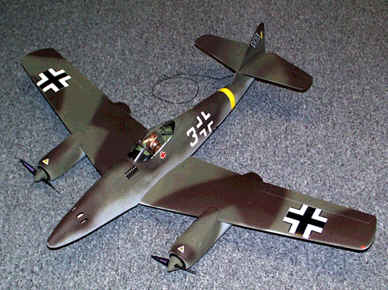

Mark's Messerschmitt Me262.
|
A selection of Mark's scale models.
|
Mark with more models.
|
Provisional drawing for a future project ! BAe146-100 to 1/24 semiscale ! Around 43" span for twin Speed400's and Gunther props !
|

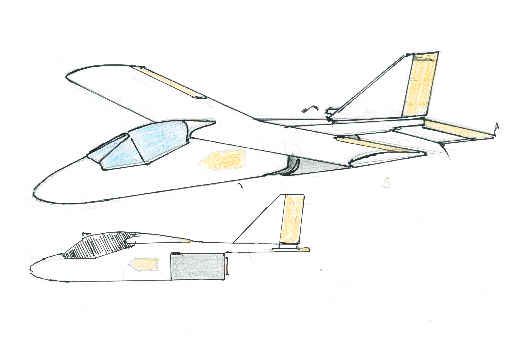

'Trainerfan' awaiting photos !
|

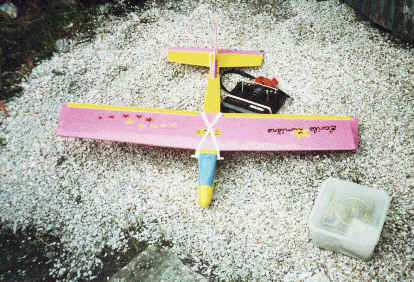

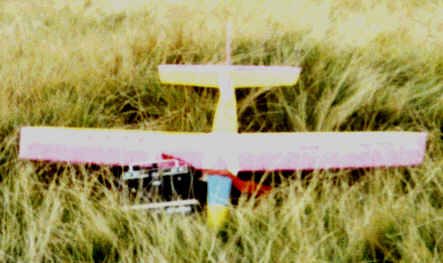

Etoile Lumier Glider . . . On Pendle Hill.
|
It weighed 15 ounces - Ready to Fly Not bad for 1990 with three servos !
|

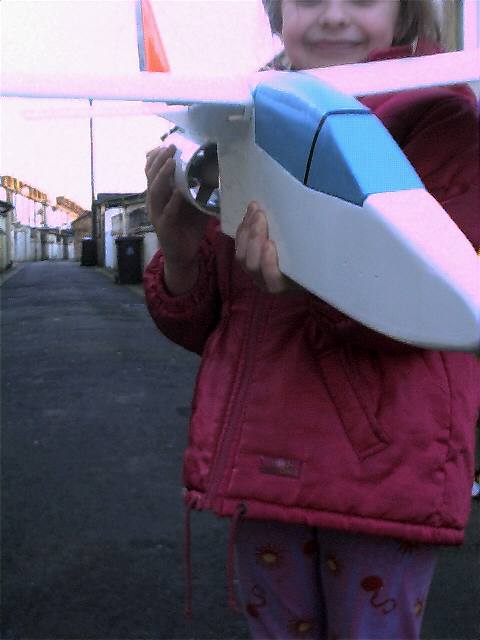

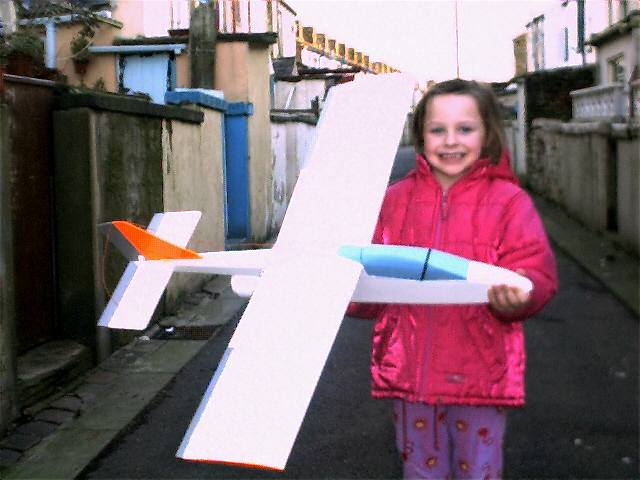

My Daughter with my TrainerFan
|
You can see the Fan ! It is 2.5" diameter powered by a Speed400 4.8v motor.
|
I am currently designing TrainerFan Mk2. This will be smaller and lighter but the same basic shape but without rudder control ! I am looking at fitting a Turbo450 motor to the fan !
|

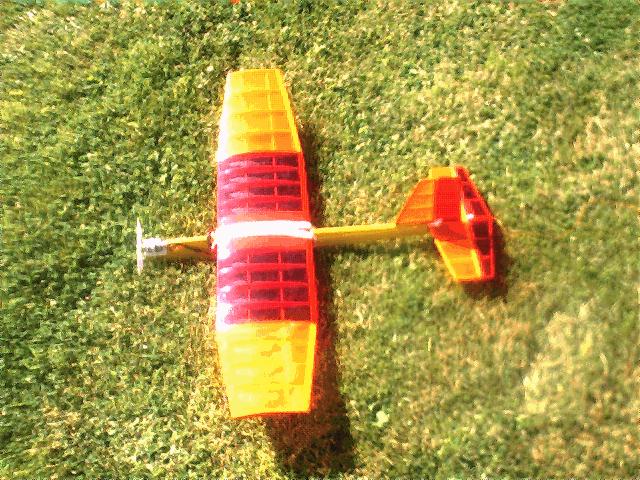

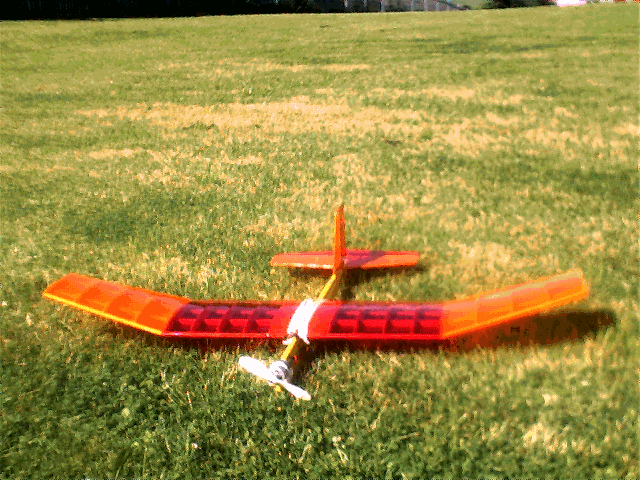

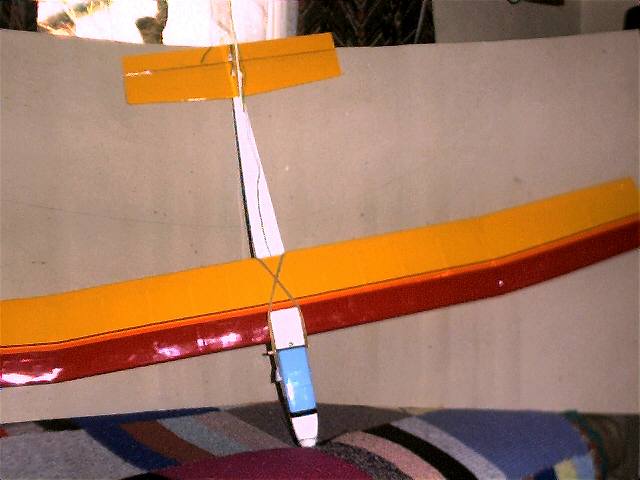

My new, Speed280 powered motorglider. 4.7" folding prop,12 1/2 ounces and 44" span. Flies for 6 minutes as a Slowflier or extend flights by gliding ! Battery is 6-cell 300mah.
|

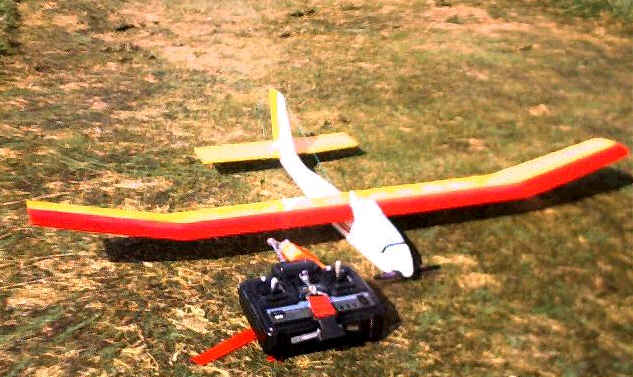

A more recent pic of my 44" motorglider. Now the nicads are 7-cells, and I have five of them to fly with !
|

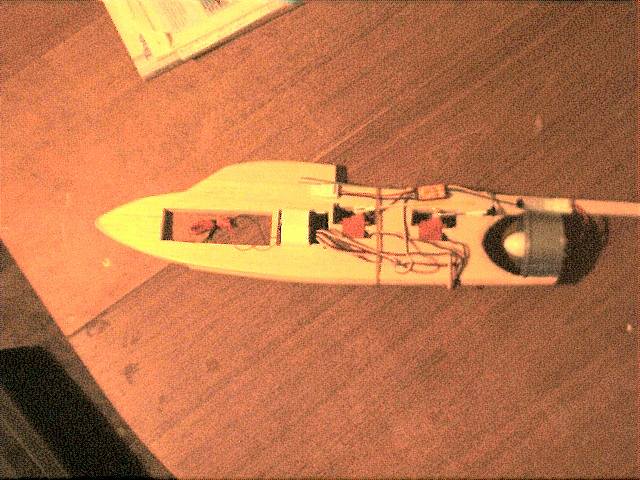

As can be seen, this is a very basic airframe, simply made to assess the power of the remotored fan. S300 now fitted as a Turbo 450 is 2mm too big. This will be TrainerFan2 Mk1. Probably be renamed too !
|

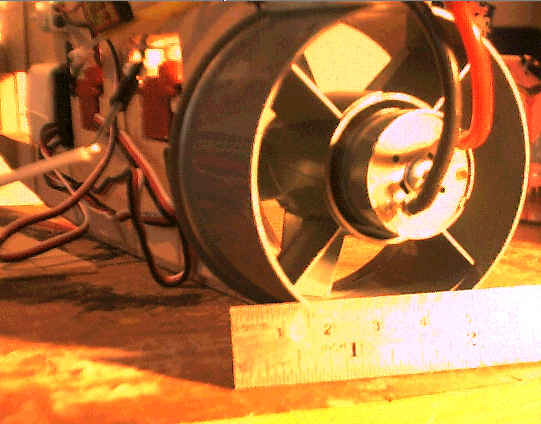

The fan remotored with S300 ! The simple fuselage can be clearly seen. Note the gap around the smaller motor ! TrainerFan Mk2 will have full fuselage like that of the original, pictured above.
|

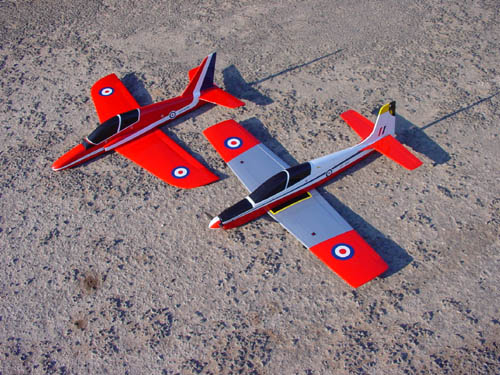

These are the two models featured in June/July RCM&E by Nigel Hawes.
|
|
|
|
|
|
|
|
|
|
|
|
